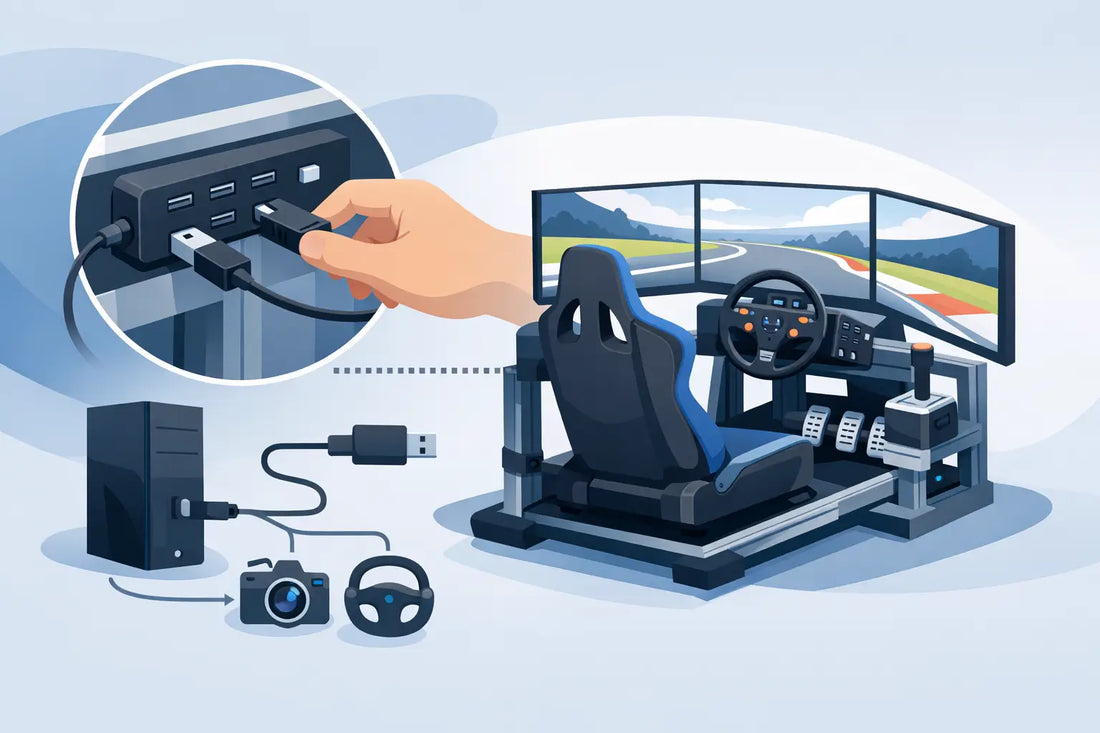

How to Install USB Hub on Sim Rig

A USB hub bolted loosely to a profile rig is not an upgrade. It is another failure point. If you want to install USB hub on sim rig hardware properly, the job is not just about adding ports. It is about controlling cable movement, reducing connector strain, and locking the hub into a fixed position that will not shift under vibration, pedal load, or repeated cockpit entry.

Most cockpit builders only notice the problem after the rig is finished. The wheelbase is mounted. Pedals are aligned. Displays are in place. Then the USB runs begin - wheel, pedals, shifter, handbrake, button box, dash, keyboard tray, bass shaker controller, wireless receiver. Cables start crossing open spans, hanging off side rails, or pulling against motherboard ports. That is where poor mounting decisions show up.

A proper hub install solves three things at once. It centralises connections, shortens unsupported cable runs, and gives the rig a cleaner service path when you need to swap hardware. Done badly, it creates intermittent disconnects, clutter, and a weak point in an otherwise rigid structure.

Why install USB hub on sim rig frames at all?

Direct connection to the PC sounds clean in theory. In practice, it is usually inefficient. Long cable runs from each peripheral back to the tower create more drag, more snag points, and more chance of accidental disconnection during maintenance.

A hub mounted directly to the cockpit changes the routing logic. Peripheral cables terminate close to the device cluster, then a single upstream cable runs to the PC. That matters even more on 8020 aluminium extrusion rigs, where every mounted component should follow the same design rule - fixed, aligned, and mechanically supported.

There is also a serviceability benefit. If your wheelbase, pedal set, and controls all feed into one stable hub location, troubleshooting becomes faster. You are not tracing cables under the seat or behind displays looking for the one connector that worked loose.

The trade-off is simple. A hub adds another device in the chain, so quality matters. A cheap bus-powered unit with weak housing and poor port retention can create more problems than it solves. If the rig carries multiple high-draw peripherals, powered hubs are usually the correct choice.

Choose the mounting position before you touch the hardware

The best location depends on how your cockpit is used. There is no universal mounting point that suits every rig.

On most sim racing setups, the hub works best on the side rail, close to the wheelbase uprights or just rearward of the pedal deck. That keeps wheel, pedal, dash, and shifter cables short without forcing tight bends. For flight simulation, side console placement often makes more sense because the control density is spread wider across the cockpit.

Avoid locations exposed to foot traffic, heel movement, seat slider travel, or knee impact during entry. Also avoid mounting the hub on a floating panel or flexible accessory arm. If the rig is built around aluminium extrusion, mount the hub to the extrusion itself. That is the structural backbone. Everything else is secondary.

Cable direction matters as much as hub position. Before final fitment, check where each USB lead enters the hub and how the upstream cable exits towards the PC. You want straight, supported runs. Not cables forced into sharp turns because the hub was mounted for visual symmetry rather than routing logic.

What a correct install looks like

To install USB hub on sim rig profiles properly, the hub needs rigid mechanical support. Adhesive pads, hook-and-loop straps, and generic desk clips are temporary fixes. They fail under heat, dust, vibration, and repeated cable changes.

A correct installation holds the hub chassis flush to the mounting surface, with no rocking, no flex under connector insertion, and no reliance on cable tension to stay in place. Port access should be clear. Connector bodies should not foul on brackets, profile edges, or neighbouring hardware.

This is where purpose-built mounting hardware matters. A dedicated T-slot solution designed around aluminium extrusion lets the hub sit where it should - aligned with the rig, fixed to the profile, and integrated into the cable path rather than hanging off it. That is the difference between accessory clutter and engineered fitment.

Hardware and power considerations

Not every USB hub belongs on a high-end cockpit. If the frame carries a direct-drive wheel, load cell pedals, multiple control inputs, and additional telemetry devices, hub specification is part of the build quality.

Start with port count, but do not stop there. Leave spare capacity. If the hub is filled on day one, you have already limited future expansion.

Then look at power. Bus-powered hubs can be acceptable for low-draw input devices, but they are often marginal once multiple peripherals are connected. A powered hub provides more stable device support, especially where backlit controls, wireless receivers, dash displays, or firmware-sensitive hardware are involved. Stable power is not a luxury. It reduces odd faults that waste time.

Housing rigidity also matters. Lightweight plastic shells move when you insert or remove cables. That movement transfers directly into the mount and the ports. A stronger chassis, mounted correctly, gives better connector support and longer-term reliability.

Installation process on an 8020 cockpit

Begin with the rig in its final driving configuration. Seat position, pedal spacing, wheel height and side-mounted controls should already be set. There is no point fixing the hub if the surrounding components are about to move.

Mock up the location first. Hold the hub against the chosen profile and route the actual device cables to it. Check length, bend radius, and access. This dry fit usually exposes mistakes before any hardware is tightened.

Once the position is confirmed, install the mount to the T-slot profile with the correct channel hardware. The bracket should seat squarely against the extrusion and tighten without twisting. If the mount relies on offset spacing, confirm that the hub body clears bolt heads and profile lips cleanly.

Attach the hub to the bracket with even clamping pressure. Do not over-tighten to the point of distorting the housing. The goal is fixed retention, not crushing force. When finished, the hub should feel like part of the rig, not something added afterwards.

Route each peripheral cable with intent. Follow the extrusion lines where possible. Support longer runs so the connector is not carrying cable weight. Keep data leads clear of moving seat hardware and away from areas where shoes, knees, or hands regularly pass. If the upstream cable runs to a PC beside the cockpit, give it a controlled exit path instead of letting it drape off the frame.

After connection, test each device under operating load. Turn the wheel lock to lock. Apply full pedal force. Move shifters and handbrakes through their full range. If any cable tightens, rubs, or shifts the hub body, the routing is wrong and should be corrected immediately.

Common mistakes when you install USB hub on sim rig builds

The first mistake is mounting for convenience instead of structure. Builders often place the hub where there is empty space, not where the cable architecture makes sense. Empty space is not a design principle.

The second is ignoring connector clearance. Some hubs look compact until right-angle plugs, thick USB housings or braided leads are inserted. Suddenly ports are blocked or cable bends become too aggressive.

The third is underestimating vibration and repeated handling. Even on rigid rigs, frequent connector changes place load into the hub body and mount. If the mounting method has any movement in it, wear starts immediately.

The fourth is poor power planning. Random disconnects are often blamed on firmware, Windows, or the peripheral itself when the real problem is an overloaded or unstable hub.

A cleaner rig is a more reliable rig

There is an aesthetic gain here, but it is not just about appearance. Clean cable management reflects proper load control and proper service access. A tidy install makes faults easier to diagnose and routine hardware changes faster to complete.

For builders using modular extrusion frames, this is exactly where a dedicated mounting solution earns its place. Mint Motive approaches the problem the same way the rest of the cockpit should be approached - rigid fitment, exact alignment, and no tolerance for accessory hardware that moves, sags or looks improvised.

If you are going to add a hub, mount it like it belongs there. The right position, the right bracket, and the right cable path will outlast every temporary fix you are tempted to use.
